550 Kg Movable Hydraulic Scissor lift
Application
- Building Material Shops
- Machinery Repair Shops
- Manufacturing Plant
- Food & Beverage Factory
- Farms
- Construction works
- Energy & Mining
- Hotels
Technical Specifications
| Model No. | TIL-550 Kg Movable Hydraulic Scissor lift | |
|---|---|---|
| Working Load | 550 Kg | |
| Extension platform for safe working load | 113 KG | |
| Maximum number of workers | 2 | |

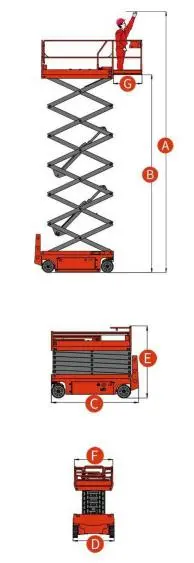

| Maximum working height (A) | 7.8 Mtr. | |
| Power | 24V/4.5KW | |
| Maximum platform height (B) | 5.8 Mtr. | |
| Complete Machine Length (C) | 2480 MM | |
| Overall width (D) | 1190 MM | |
| Power Type | Electric | |
| Overall height (guardrail not folded) | 2190 MM | |
| Overall height (guardrail folding) (E) | 1680 MM | |
| Work Platform Size (F) | 2290*1150 MM | |
| Platform extension size (G) | 900 MM | |
| Minimum ground clearance (closed state) | 100 MM | |
| Minimum ground clearance (lifting state) | 200 MM | |
| Wheel Base | 1890 MM | |
| Minimum turning radius (inner wheel) | 0 M | |
| Minimum turning radius (outer wheel) | 2.2 Mtr. | |
| Lift motor | 24V/3.3 KW | |
| Machine speed (closed) | 3.5K Mtr./h | |
| Machine running speed (lift) | 0.8Km /h | |
| Rise / fall rate | 28/38sec | |
| Battery | 4X6V/200ah | |
| charger | 24V/30A | |
| Maximum Climbing Capacity | 25% | |
| Maximum allowable angle of work | 1.5 °/3 ° | |
| Tyre | Φ381X127 MM | |
| Weight of the Machine | 2150 Kg | |
